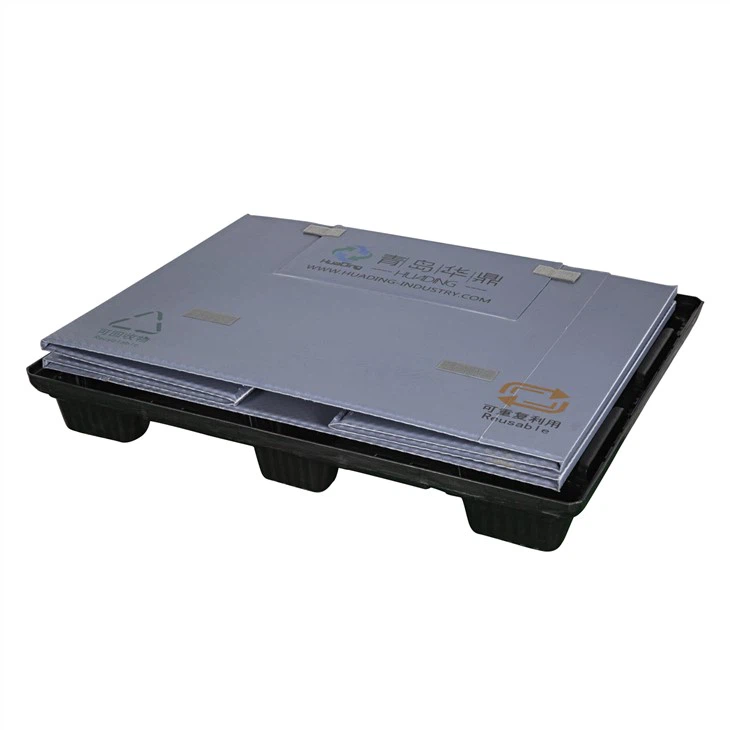

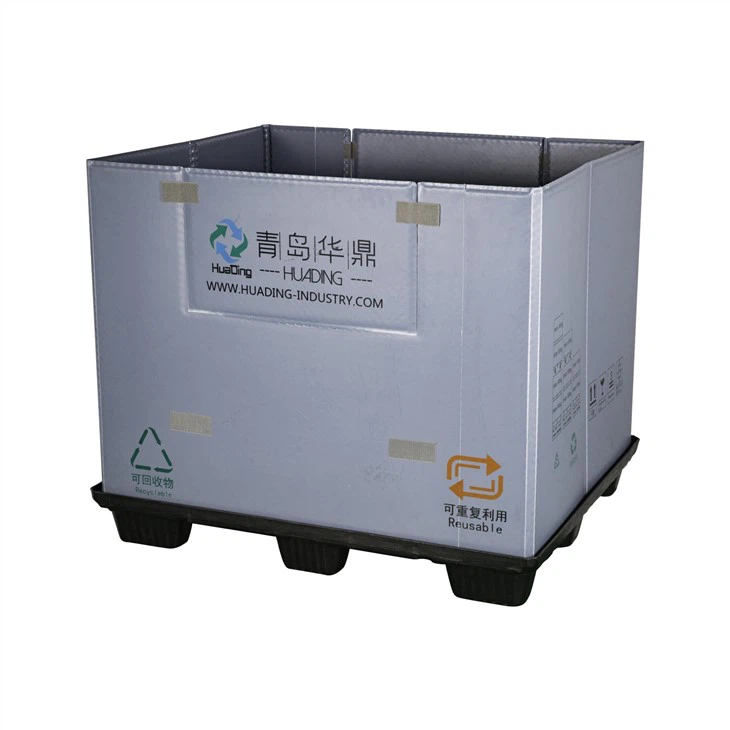

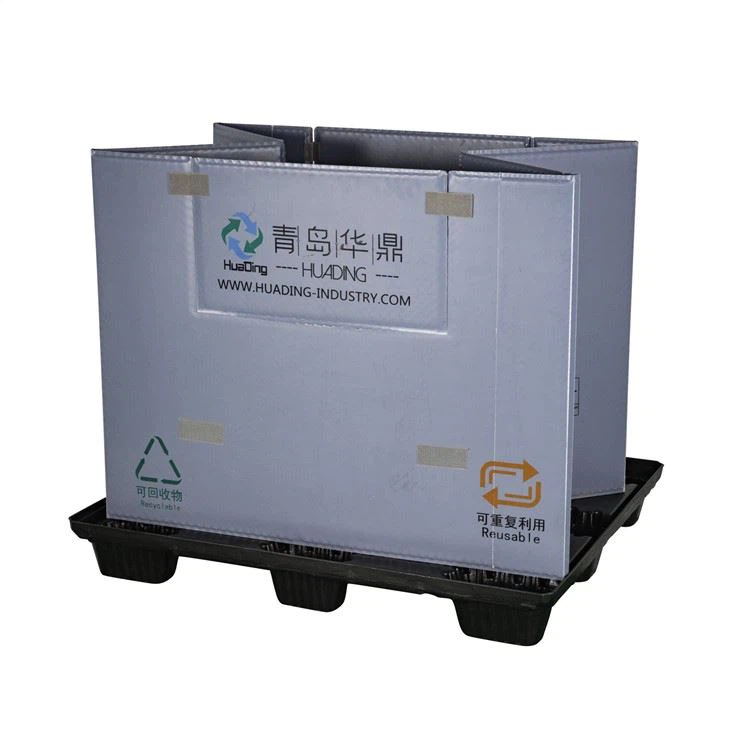

Hollow PP Honeycomb plastic sleeves boxes
2.Folding method: M type folding
3.Lock Optional:(Safety belt lock)
4.Capacity: Various-customized
5.Forklit: 4 way entry
6.Size: Customer Size
7.Certification: ISO SGS
8.Spare Parts: lid,wheel,water outlet
9.Usage: Store.Warehouse
10.Height: Various-customized
Send Inquiry
Product Details ofHollow PP Honeycomb plastic sleeves boxes
Hollow Pp Honeycomb plastic sleeves boxes Compared with traditional cartons, wooden boxes, iron boxes, corrugated plastic pallet boxes, storage cages, and other packing boxes, have the characteristics of high load-bearing, folding, waterproof and disproof, recyclable, etc. Upper and lower heaven and earth covers are divided into four types: die-casting, injection molding, blister, and double-layer blister, which can be selected according to the specific load-bearing and use requirements of customers.
| Model | HDCM1210 |
| OD(mm) | 1200*1000*760 |
| Valid ID(mm) | 1130*930*615 |
| Folded height （mm） | 205 |
| Weight of pallet and cover(kg) | 23（Pallet & Cover）HDPE or strengthen PP |
| Sheeve weight（kg) S type or straight type | 9.8(sheet)PP thickness12mm3.5kg/m² |
| Maximum pressure | 40207N |
| Single box load（kg) | 350 |
| Static load（kg) | 1400 |
| Dynamic load（kg) | 1050 |
| Static stacking | 4 |
| Dynamic stacking | 3 |
| Goods shelf | No（川 type is suitable for shelf） |
| Lock | Optional(Safety belt lock) |
| Folding method | M type folding |
| Truck loading method | Suitable for wing truck or flat truck≥2.4m |
| Recycle method | The nested protection recycle ratio is 1:4.33 |
| Folding intensity | Folding more than 60000 times |
| Temperature range（℃） | -20℃ to 55℃ |
| Working life | Five years（Normal use） The material is anti-aging |
| Repurchase | If there is any waste box after 3 years, we can offer 1 new box for 4 waste ones |
The thickness and size of collapsible plastic storage crate can also be determined according to the load-bearing requirements of the customer; Hollow pp honeycomb plastic boxes folding, and suitable for truck, container transport size, return to 1:5; The pallet sleeves inner space of collapsible plastic crates can be customized according to the shape and size of the customer's products, and the professional engineering department can customize the inner lining design scheme to provide one-stop service for better protection of the products; Different from the hollow plate and rice plate structure on the market, our company adopts the high-strength new honeycomb plate structure, bearing more than the former 2-3 times.
