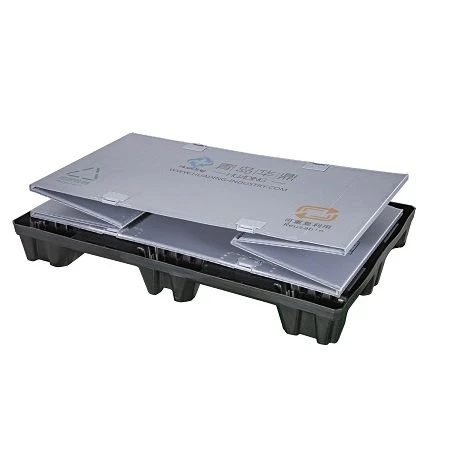

Foldable Honeycomb Plastic Pallet Sleeve Box
Foldable Honeycomb Plastic Pallet Sleeve Box has gradually become a trend product, it mainly consists of three parts: bottom pallet, coaming, and lid.
The upper lid and bottom pallet are processed by double-layer blow molding/blister molding, which is wear-resistant and anti-falling and has good load-bearing performance.
Name: | Foldable Honeycomb Plastic Pallet Sleeve Box | |
Item No. | HD-CM1208 | |
Material: | HDPE(lid & pallet)+PP(honeycomb sheets) | |
Outside data. (mm) | 1200*800*500*760/ 860/ 1000/ 1050/... • Any customized height | |
Effective inner data. (mm) | 1155*755*330/ 590/ 690/ 830/ 880/... • outside height -170 | |
Sheet height(mm): | Total height-120 | |
Folded height(mm): | 1200*800*205 | |
pallet & lid weight (kg): | 16 (pallets,5kg + lid:7.5kg) | |
Locks | Optional, 4 locks at the lid,4pcs at bottom pallet | |
Heavy duty type: | Optional, Reinforced by 2pcs steel tubes in pallet | |
honeycomb sheet | 11.3mm 3.0kg/m2 | 11.3mm 4.0kg/m2 |
Single box load: | 300kg | 500kg |
Static load: | 1+3 (1200kg),height<900mm; 2="" height="">900mm | 1+3 (2000kg),height<900mm; 2="" height="">900mm |
Dynamic load: | 1+2 (900kg),height<900mm; 1="" height="">900mm | 1+2 (1500kg),height<900mm; 1="" height="">900mm |
The hoarding board adopts a honeycomb board, which has excellent load-bearing performance and good welding performance. The length, width, and height can be customized arbitrarily without mold cost. Suitable for bulk granular packaging and liquid packaging; suitable for oversized packaging. The utilization rate of honeycomb panel materials is high and the price is moderate.
Foldable Honeycomb Plastic Pallet Sleeve Box folds when not in use, greatly saving storage space and reducing shipping costs.
Collapsible Honeycomb Plastic Pallet Sleeve Box is environmentally friendly and non-polluting in the material and production process can be recycled and reused and has a high waste recycling rate. Lightweight, reducing carbon emissions in logistics and transportation, it is an uncompromising environmentally friendly packaging.
