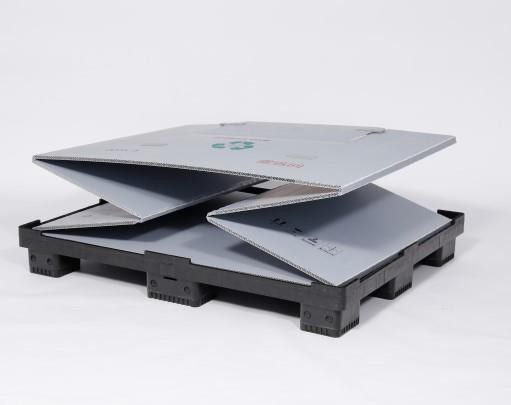

Hollow Double-Layer pallet sleeve box of heaven and earth material is HDPE (lid & pallet) + PP (sheets), the size is 1200 * 1000 mm, outside the effective size 1140 * 940 mm, inside effective height of Total height 170 mm, weight is 18 kg, single box bearing is 300 kg, the static load is 1 + 3 kg, the dynamic load is 1 + 2 kg, but fold number greater than or equal to 30000 times, applicable temperature: -20°C~55 °C, life in three years. pallet sleeves have Honeycomb high-strength polypropylene (PP) material, the honeycomb panel is composed of an intermediate layer between the upper plastic skin layer and the lower plastic skin layer, the intermediate layer is a plastic sheet, the plastic sheet The surface of the plate is uniformly provided with protrusions and depressions, the protrusions and depressions are all circular in the direction of the plate surface, and the protrusions and depressions are staggered on the plate surface to make the plastic plate.

1. Lid available

(1) Keep the cargo tight, so that the cargo is not prone to moisture and damage.

(2 )Covered crate boxes can be stacked to save a lot of space.

(3) Cap can be equipped with a lock to ensure cargo safety.

2. Can be stacked

(1) 4 layers for static stacking.

(2) 2 layers for dynamic stacking.

(3)Save a lot of space.

Hollow Double-Layer pallet sleeve box, The shape of at least one of the cross-sections is irregularly undulating; the top surface of each of the protrusions of the intermediate layer is fixedly connected with the upper plastic skin layer, and the bottom surface of each of the depressions is fixedly connected with the lower plastic skin layer, thereby fully utilizing the efficiency of the intermediate layer. to improve the load-bearing property of the plate surface, and because the protrusions and depressions are circular, the force on each side is more uniform, so that the lateral force of the honeycomb panel is laterally applied (ie, the transverse section is subjected to force and longitudinal section). The load-bearing capacity of the force and even the oblique section is at a higher level. The thickness of the sheet is 10±0.2mm. In terms of load-bearing, to continuously develop better technical formulas and guarantee our load-bearing. Capacity delivery time fast. Generally, will start the delivery within 15 days after signing the contract. Strictly control the quality of products.
