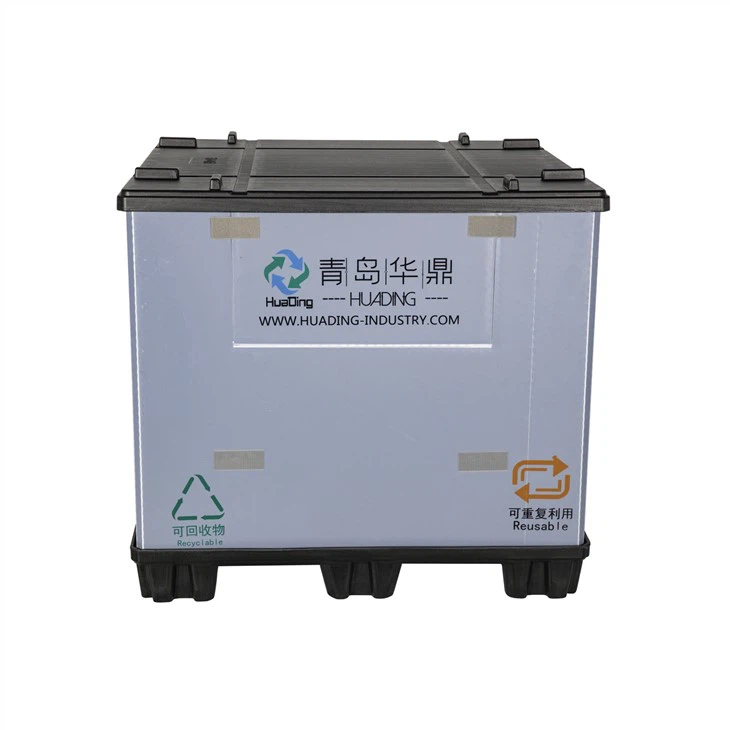

Durable Plastic Pallet Sleeve Box
Durable Plastic Pallet Sleeve Box is composed of a foldable box and up and bottom cover plates.
The foldable coaming uses PP material and double crease process, which is conducive to the folding and expansion of the coaming and increases the bending life.
The plates are composed of double-layer blister pallets made of HDPE material. The hot pressing place of a plastic pallet sleeve box can be folded and used more than 30,000 times.
|
Products Parameters |
||||
|
Name
|
Plastic sleeve boxes with double blister/blow molding lid and pallet |
honeycomb sheet |
11.3mm 3.0kg/m² |
11.3mm 4.0kg/m² |
|
Item No. |
HD-CM1210 |
Single box load |
500kg |
300kg |
|
Material |
HDPE(lid&pallet)+PP(honeycomb sheets) |
Static load |
1+3(1200kg),height<900mm; 1+2(1200kg),height>900mm |
1+3(2000kg),height<900mm; 1+2(2000kg),height>900mm |
|
Outside dia.(mm) |
1200*1000*760/ 860/ 1000/ 1050/... Any customized height |
Dynamic load |
1+2(900kg),height<900mm; 1+1(900kg),height>900mm |
1+2(1500kg),height<900mm; 1+1(1500kg),height>900mm |
|
Effective inner dia.(mm) |
1140*940*330/ 590/ 690/ 830/ 880/... outside heght -170 |
Folding times |
≥30,000 times |
|
|
Sheet height |
Total height-120 |
Temperature |
-20°C-55°C |
|
|
Folded height |
1200*1000*205 |
Service life |
More than 3 years |
|
|
Pallet & lid weight (kg) |
18 (pallet:10kg + lid:8kg) |
Volume Reduced |
Nested recycle，ratio is 1:4-6（depends on sheets' height） |
|
|
Locks |
Optional, 4 locks at lid, 4pcs at bottom pallet |
Folding type
|
M-folding |
|
|
Heavy duty type |
Optional, Reinforced by 2pcs steel tubes in pallet |
Single box load |
750kg |
|
Why choose us?
·Good material and competitive price
·Professional manufacturer and rich experience in production
·Meticulous workmanship, details witness the quality
·Support customization
·Factory outlet
It can be used in various scenarios like automobile production workshops, hardware and electric appliance factory, loader parts factory and warehouse storage to meet your various needs.
