1200x1000mm High Load Capacity Hygienic Plastic Pallets with 3 Skids HD3RCWS1210J

1200x1000mm High Load Capacity Hygienic Plastic Pallets with 3 Skids HD3RCWS1210J

1.Product Figure 2. Product Data Sheet 3.Specification 4. Product Feature 1)Plastic pallets with 3 runners bottom are widely used for transportation and storage. 2)They have corrosion resistance, non-absorbent,moth-proof and other excellent feature,so they adequately protect cargoes. 3)With...

Product Details

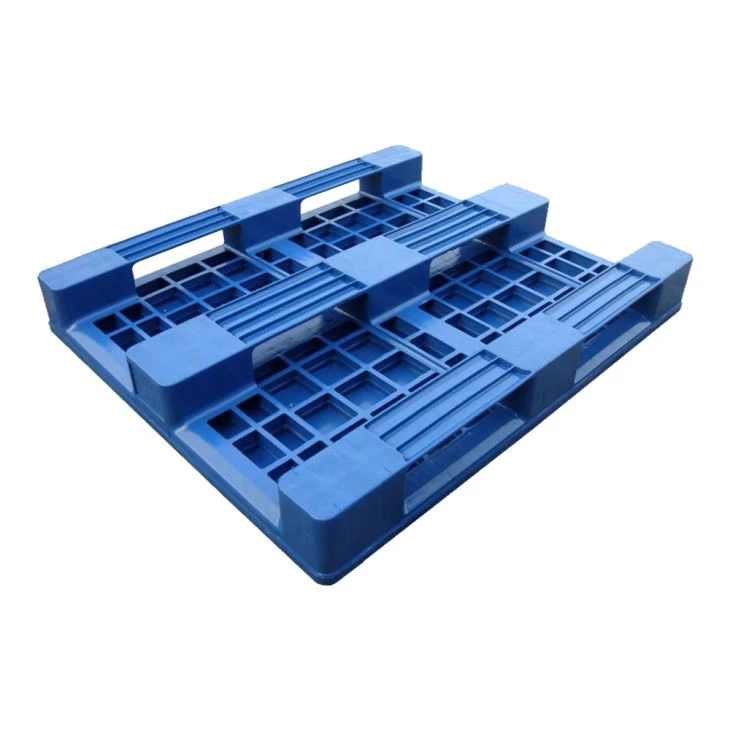

1.Product Figure


2.Product Data Sheet

Specification

1200×1000×150 mm

Load Capacity

Static Load:6T

Dynamic

Load:1.5T

Racking

Load:1.2T

Unit Weight

21.12±0.5kg / 22.15±0.5kg  differ on weight of steel tubes

Material

HDPE

Usage temperature

-25℃~40℃

Colour

According to customer demand

Mark

Integrated printing

silk screen printing

Structure   characteristic

Deck type

Closed decks

Bottom type

3 runners

Reinforcement

Decks: reinforced by 5pcs steel tubes

Bottom: /

production process

Injection Molding,Sweating Soldering

3.Specification


4.Product  Feature

 1)Plastic pallets with 3 runners bottom are widely used for  transportation and storage.
 2)They have corrosion  resistance, non-absorbent,moth-proof and  other excellent feature,so they adequately protect cargoes.
 3)With irreplaceable advantages of wooden pallets : Moisture  proof, mouldproof, no nails, no  thorns, no pests, flaky, recyclable, safety and health, etc.
 4)4 ways,applicable for transposition  by hand pallet trucks and forklift
 5)Pallets are made of HDPE, poisonless and harmless
 6)Flat surface Protect the  goods from damage.
 7)Pallets with closed deck are easy to clean since  it's designed as smooth  surface without dead  angle of hygiene residue.
 So they are widely used in the food and  pharmaceuticals industries.

 8)Pallets reinforced by steel tubes,which  increase load capacity of pallets,and make pallets perform better in  handling      heavy -duty goods and on  racks.

 9)All the reinforced steel tubes are  assembled completely inside of pallets,which avoid of rust in long time use.

 10)Pallets decks adopt surface galling  treatment,which improve surface friction properties and avoid cargoes sliding  down.


5.Advantages

1) Round and chamfered edge of entry design is more easier  for accessing goods.




2) Crossed steel  tubes increase load capacity. Built-in steel tubes could resist rusty caused by  wet.


3) Bar code label location reserved  at the short side.


4) The antiskid design at bottom endows the pallets with excellent antiskid property, avoid  of pallets packed with cargoes slip on smooth surface.


5)Sweating Soldering

 A)Pallets have deck and bottom 2  parts,they are made by injection molding separably.

Inner part of deck and bottom are designed latticed,which improve  physical properties,but surface could still be smooth,then excellent physical  properties and hygiene request all could be meet.
 Upper Deck


 Bottom







 B)Grooves for steel  tubes reserved in upper decks and bottom structures,thickness of steel tubes  could be changed to meet different load capacity request. Steel tubes fit the grooves perfectly,so they would not loose after welding in use.

Steel tubes fit with upper decks


Grooves  for steel tubes reserved in bottom structures



Diagram of Sweating  Soldering


6Others

 1)Surface
 Surface shall be level and  smooth, no  cracking and deformation , of  unified hue
 2)color
 No clear color deviation for  same batch of cargo
 3)Test Standard:
 GB/T 15234-94
