Product Details

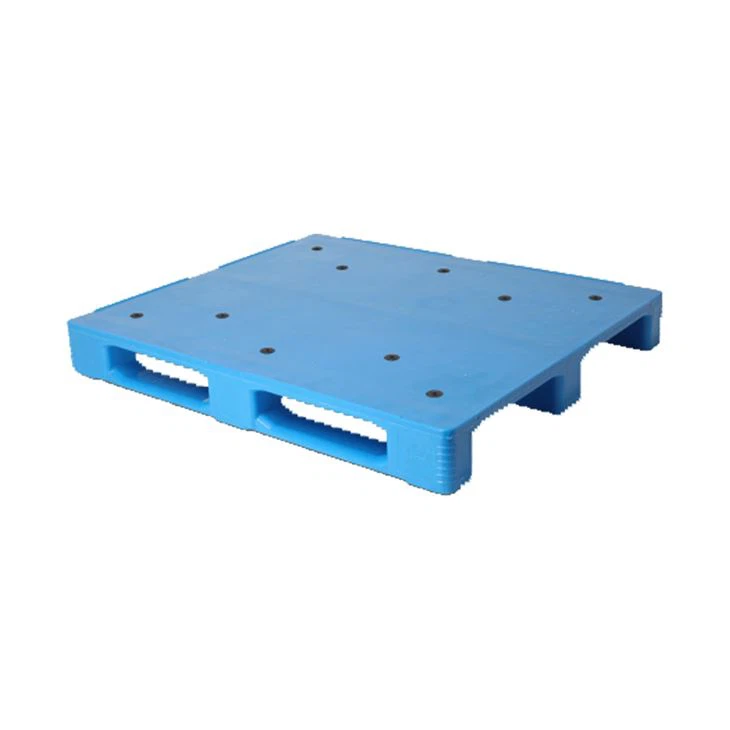

1.Product Figure


2.Product Data Sheet

Outside Dimension

1200mm×1000mm×140mm

Load Capacity

Static load:6T

Dynamic load:1.5T

Racking load:1T

Weight

20.8±0.5kg (steel tubes inside on the flat deck)

Material

HDPE

Temperature

(+40~-25)℃

Color

Customer requested

Logo

Silk printing

Structure

Deck:

Falt and closed deck

bottom:

Falt and closed deck

Steel tubes :

flat:

5 pcs Steel tubes inside

Prodcution:

Injection made


3.Specification



4.Product Features
1)It is suitable for  medicine, food industry, stacking machine, conveyor, forklift, pallet truck  operations, the use of four-way into the fork type, Sichuan word structure,  flat design, easy cleaning.


2)The use of surface and bottom welding as one of the  molding method to avoid the foot off, corrosion-resistant products, inserts  firmly to ensure that the process will not fall off.


3)Five steel tubes are placed on the face of the pallet, and the steel tubes are supported at all four bays to enhance the bearing  capacity.


4)Products  face and bottom are designed to install anti-skid block, improve product  safety.


5) Product fork hole  on both sides of the fillet, the bottom of the angle, reducing forklift  collision and the fork claw entry, easy to forklift collision position  increased wall thickness, reduce the damage rate.


6)Pallet user-friendly design, the back of the face there are  four artificial grasping mouth, easy manual  operation.


7)The bottom of the product to set up RFID chip slot at the center to meet  the functional requirements of the product information.


8)Corner anti-crash products designed to ensure  that the corner drop test performance requirements, but also play a fixed role  in the tray wrapping film.


5.Product quality standards
 1)Outlook
 Pallet surface smooth, no flash, no impact on the use  of cracks and deformation, the edge of the parts without burr, gate formation.

 2)Color

 A single pallet no obvious color, the same batch of color products are basically  the same.
